Eight screws or eleven? Start with the original.
The familiar Strat outline hides several mounting patterns. Early 1954–1959-style Stratocasters commonly use eight body screws. Fender moved to an eleven-screw guard during 1959, so the transition year cannot identify your pattern by itself. Later vintage eleven-hole layouts also differ from modern ones: an extra screw can sit in a different position even when the total count matches. Count only the screws securing the guard to the body, not the pickup-height screws or switch fasteners.
A ’50s reissue may follow the early eight-hole layout even though the guitar was built recently. A ’60s reissue needs its own comparison rather than a blanket ‘vintage Strat’ choice. Many modern American and Mexican Strats use eleven holes, but country of manufacture is not a fit guarantee. Japanese Fender, Squier, replacement bodies, and modified instruments should be checked against the actual guard. Tell us the year and exact series; if they are unknown, a clear photo or the original part is more useful than a guess.
Match the electronics as well as the outline.

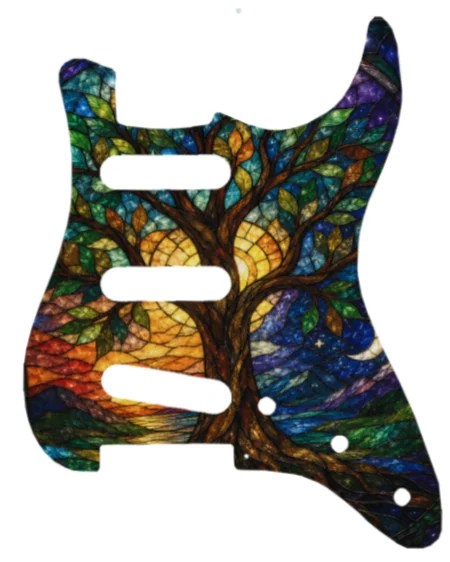

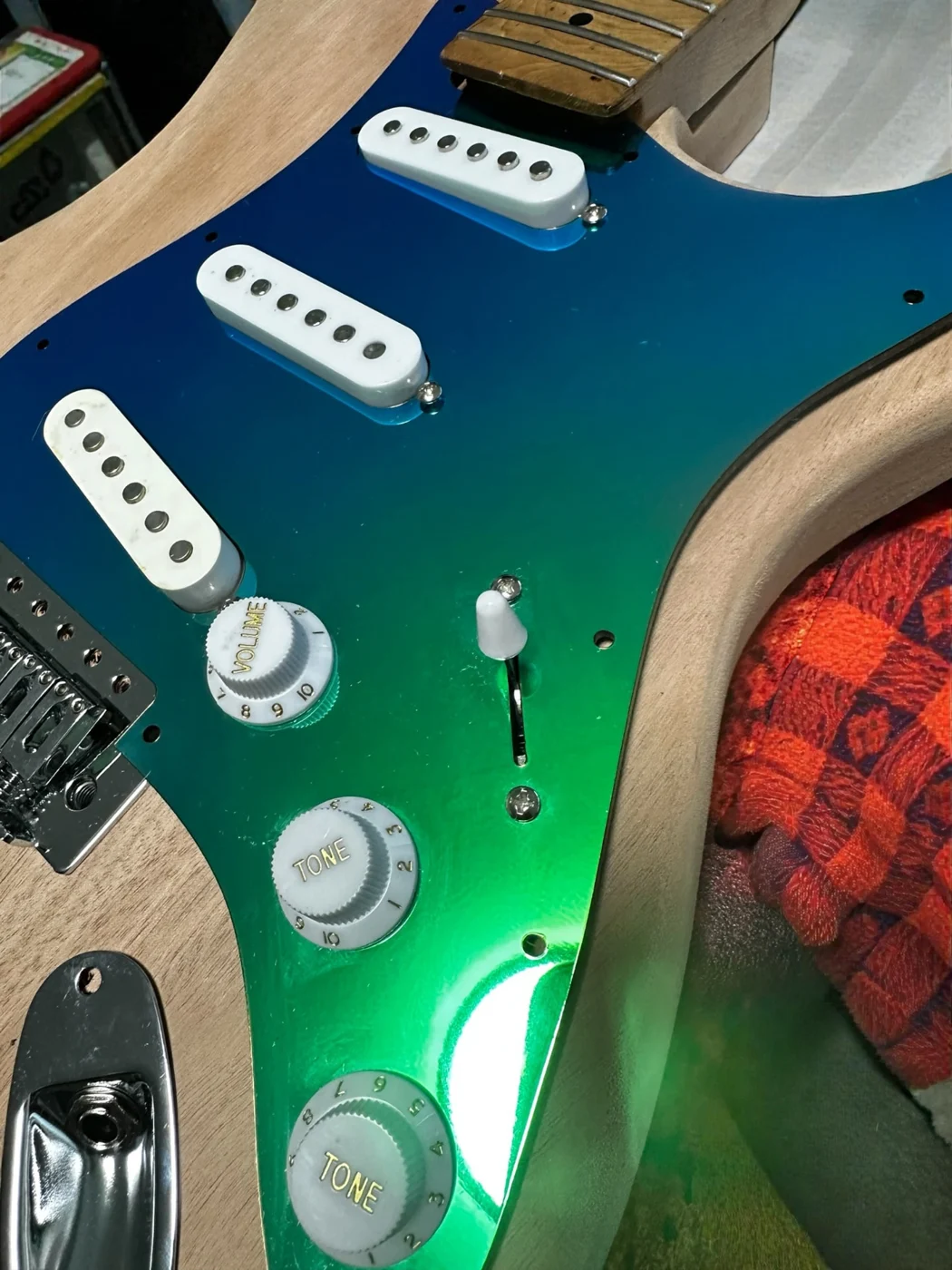

Our Strat customizer offers SSS, HSS, and HH layouts. SSS has three single-coil openings; HSS replaces the bridge opening with a humbucker; HH uses two humbuckers. Pickup shape and mounting-screw arrangement still matter within those names. A guard with a larger pickup cutout does not make room in the wooden body underneath it. Check the body routing and your actual pickups before changing configurations, especially on a guitar originally fitted with three single coils.
The neck-pocket edge, bridge clearance, control holes, and switch slot also need to line up. Don’t pull a near-fitting guard into position by tightening the screws, and don’t drill new holes simply because the artwork looks right. Contact us before ordering an unusual layout so we can discuss a photo, tracing, or original template. In the designer, choose a finish or upload your own image, position it on the Strat outline, and capture the design before adding it to your cart. That saved proof gives the workshop a reference for your intended placement.
